One-Stop SMT Line Equipments

HTGD is a manufacturer of automation and intelligent manufacturing equipment, providing reliable solutions for efficient and high-precision PCB board production and inspection.

HTGD stands out as a specialist in stencil printers, delivering fast, accurate, and stable solder paste printing for modern PCB assembly.

Solder Paste Printer

HTGD’s stencil printers provide precise and stable solder paste deposition for SMT production, ensuring repeatable print quality across diverse PCB designs.

GDK Mega Screen Printer ○ For component size down to 0402 ○ Max. board size: 450 x 350 mm ○ Min. board size: 50 x 50 mm ○ Board thickness: 0.4 ~ 6 mm

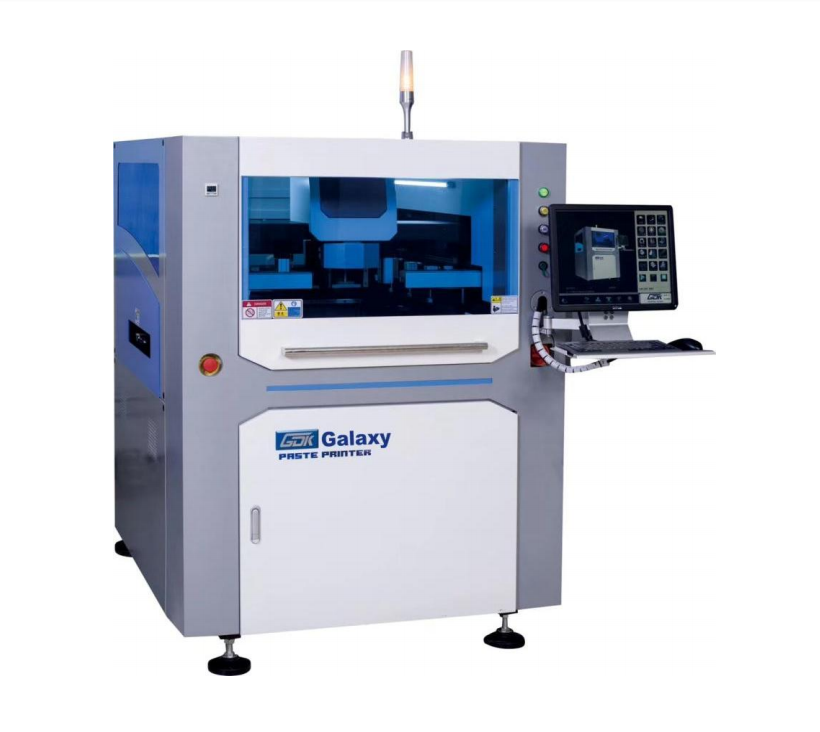

GDK Galaxy Screen Printer ○ For component size down to 0201 ○ Max. board size: 450 x 350 mm ○ Min. board size: 50 x 50 mm ○ Board thickness: 0.4 ~ 6 mm

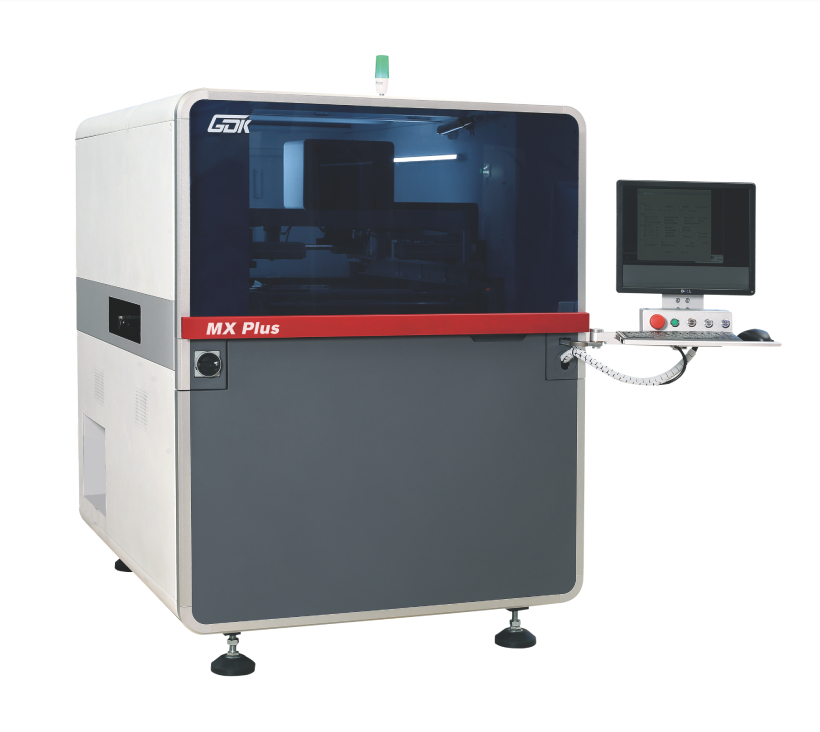

GDK MX Plus Screen Printer ○ For component size down to 01005 ○ Max. board size: 510 x 510 mm ○ Min. board size: 50 x 50 mm ○ Board thickness: 0.4 ~ 6 mm

Inspection

HTGD SPI and AOI machines work together to provide fast, high-precision solder paste and post-placement visual inspection, ensuring stable product quality, minimizing manual rework, and improving overall SMT production efficiency.

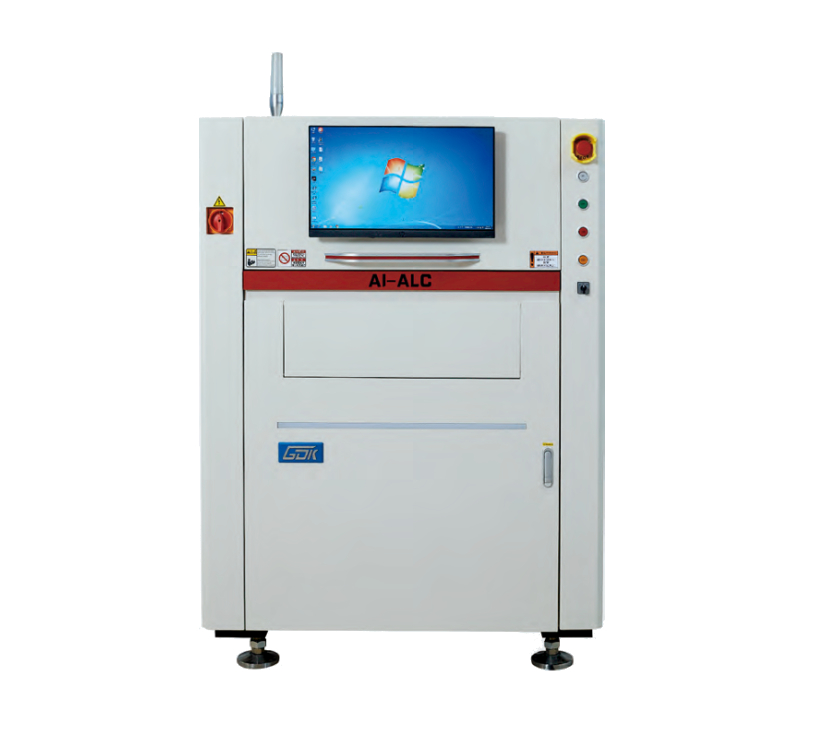

2D Inline AOI ○ Max. detection area: 510 x 730 mm ○ Min. component: 0201

3D Inline AOI ○ Max. detection area: 510 x 510 mm ○ Min. component: 0201

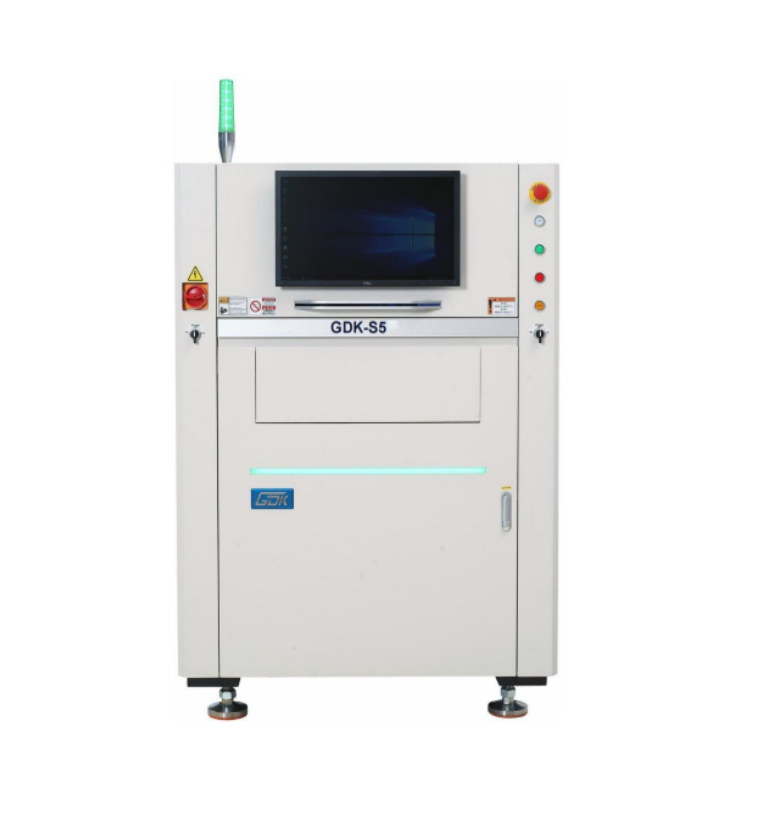

3D Inline SPI ○ Solder Paste Size: 0.2 x 0.2 mm – 12 x 12 mm ○ Field of view: 48 x 40 mm ○ Max. board size: 500mm x 460 mm

Pick and Place

HTGD PnP systems combine multi-head placement, vision alignment, and flexible feeder configurations to achieve consistent accuracy and strong compatibility with a wide range of PCB designs and component types.

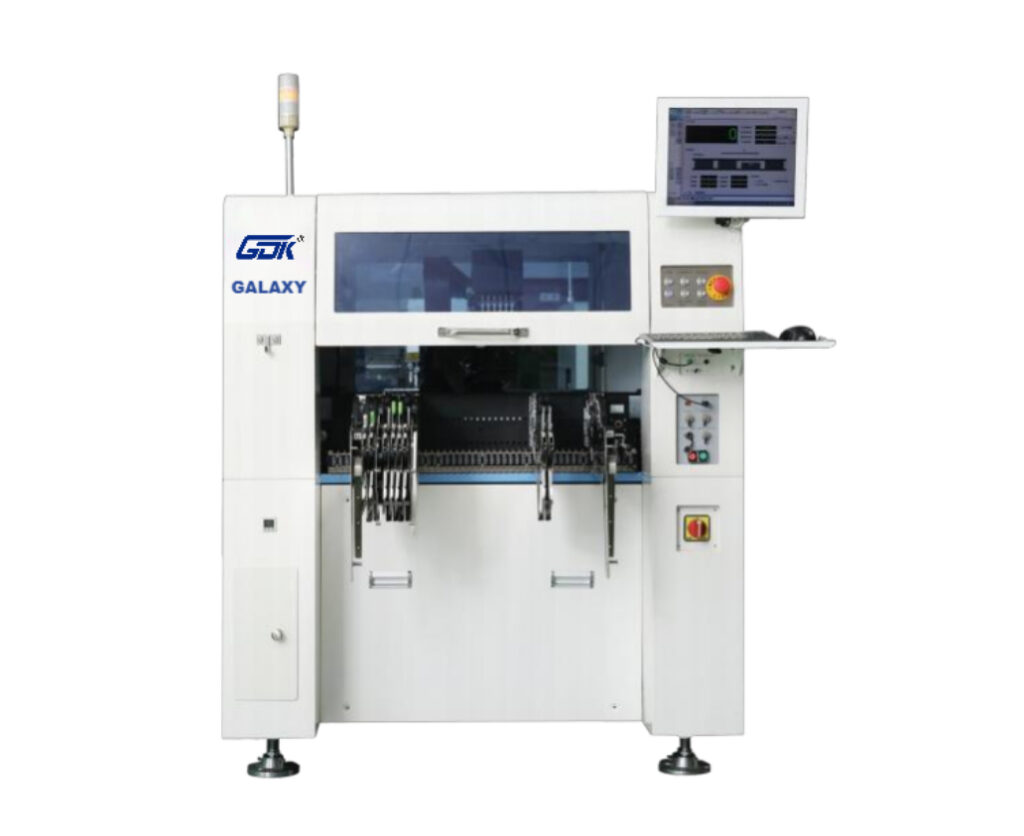

GDK Galaxy PnP ○ 6 nozzles x 1 head ○ Placement rate up to 16000CPH ○ Component size: 0201 ~ 30×25 mm, H: 15mm ○ Feeder capacity of 32 (8 mm) ○ Max. board size: 500 x 320 mm

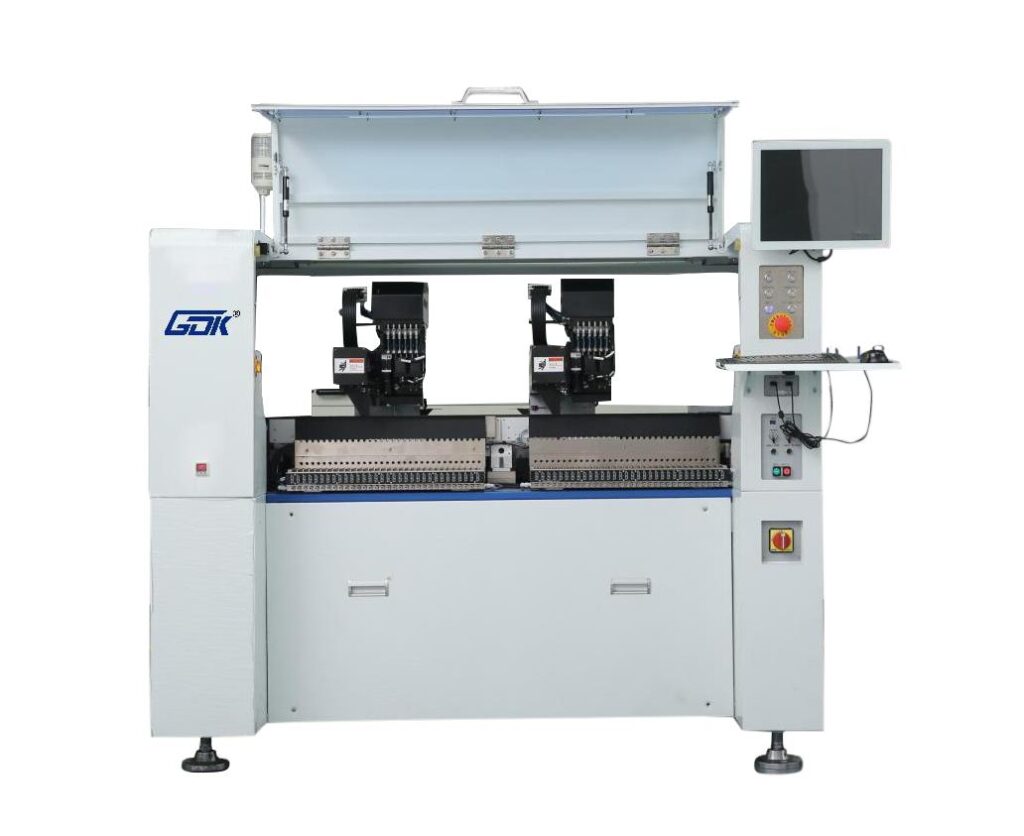

GDK Neo PnP ○ 6 nozzles x 2 head ○ Placement rate up to 32000CPH ○ Component size: 0201 ~ 30×25 mm, H: 15mm ○ Feeder capacity of 64 (8 mm) ○ Max. board size: 1200 x 320 mm

More Products

HTGD also offers a wide range of SMT related products, such as glue dispenser, x-ray machine, wave soldering machine, reflow oven, loader/unloader, etc. Please contact us for more details.
