Alloy Development & Metal 3D Printing
InssTek is a global leader in metal additive manufacturing, specialising in directed energy deposition (DED) 3D printing with multi-material and alloy-research capabilities.
Various metal AM solutions are available – from alloy development research to manufacturing in aerospace, medical and heavy-industry sectors.
Rapid prototyping for alloy design
Compact system based on DED technology
Precise powder feeding via DMT® (Direct Metal Tooling) system
Hexa-feeding system for multi materials

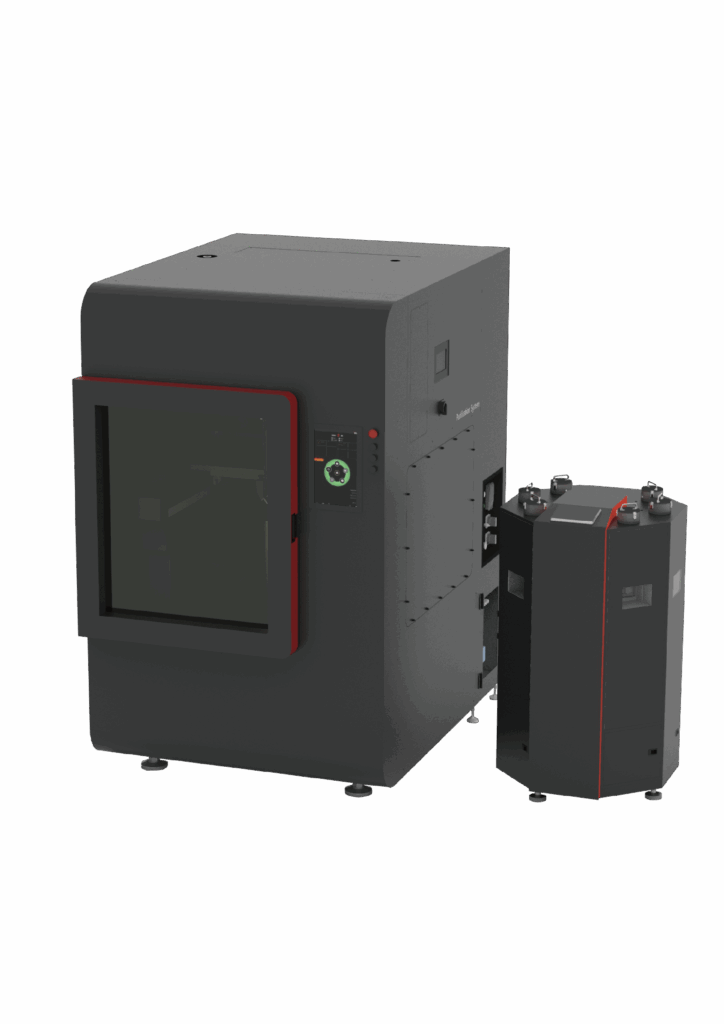

All in one system for fabrication
Hexa-feeding system for multi materials
Precise powder feeding via DMT® (Direct Metal Tooling) system
5-Axis DED system
Efficient inert gas control system
Titanium porous structrue for bio-medical application
Strong interfacial bonding between coating and base materials
Technology developed for orthopedic implant surface coating
Used for artificial hip joint (FDA approved) and knee coating
5-Axis control system

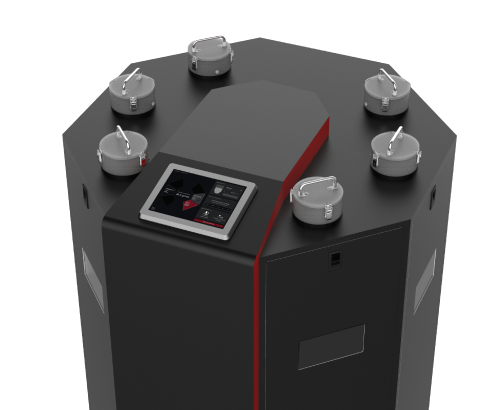

Stand-alone or integrated powder feeding system
Precise powder volume control: feeding rate range of 0.05-20g/min based on Ti-6Al-4V
Max. 6 hoppers with user-configurable mixture proportions for alloys
Ensure high-precision control for tiny amounts of powder
Patent powder feeding method & unique real-time feedback system
Large scale robot 3D printing system
Vertical stage with 6-axis robotic arm and rotary stage
Printing volume: D 3.5 * H 7.5 (m)
Longtime stable 3D printing with montitoring system
Metal Cladding

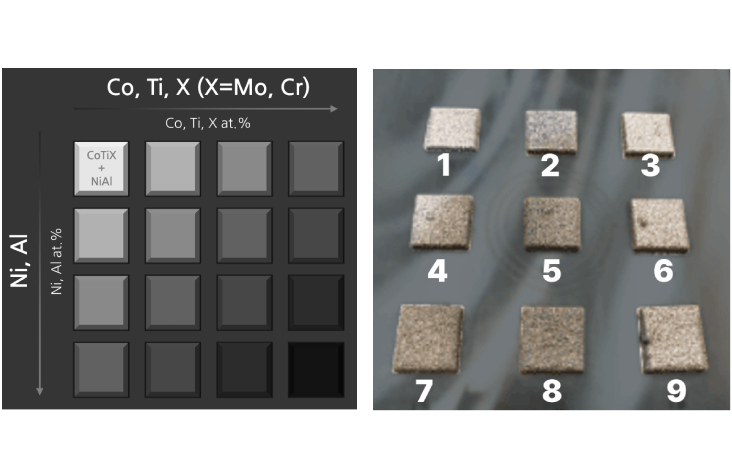

HEA Development
Multi-Material 3D Printing

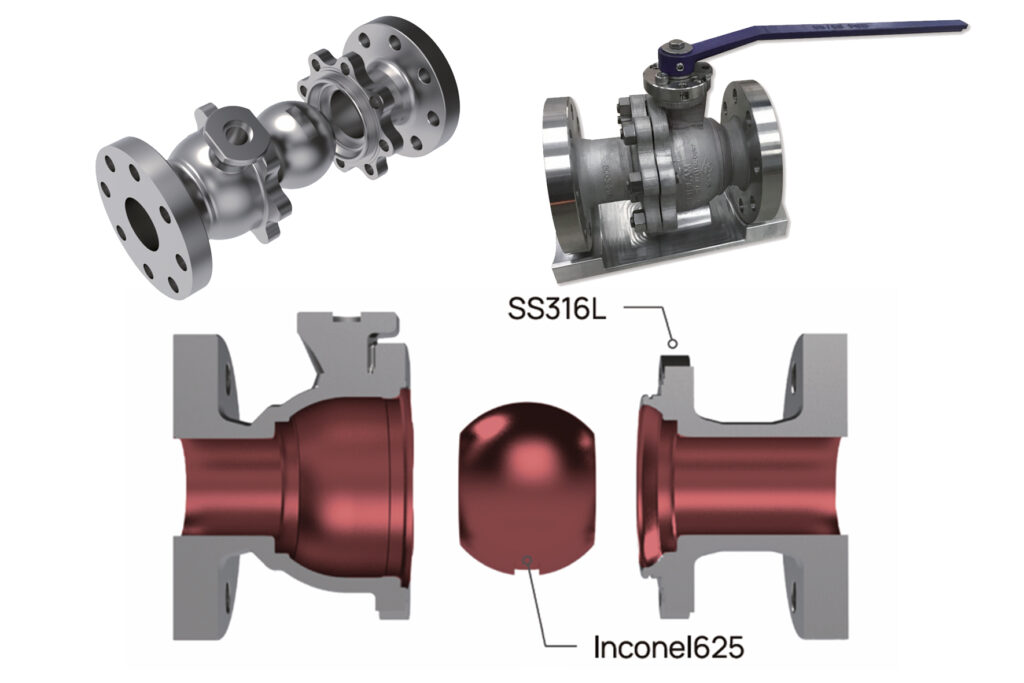

Multi Material Valve
Satellite Fuel Tank

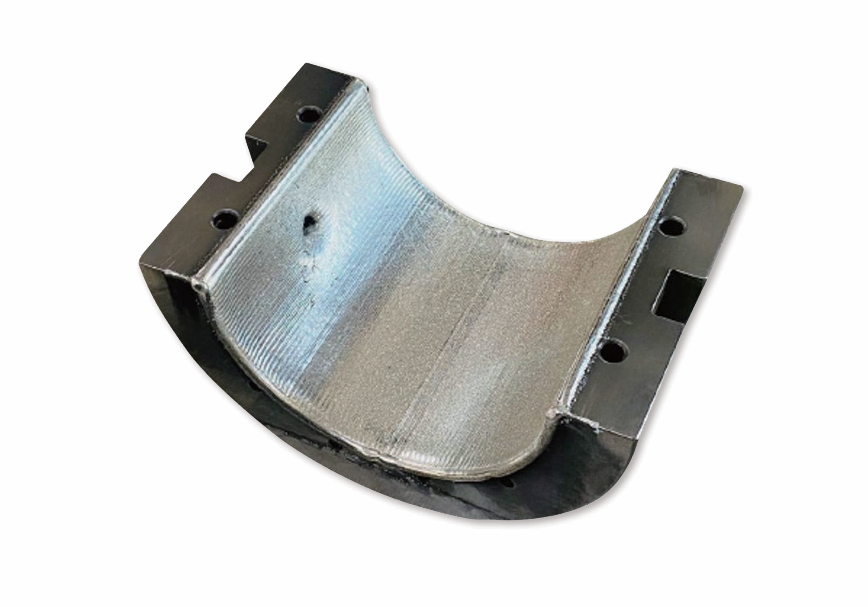

Jet Engine Shroud Support (Repair)
