NeoDen – Emlogic

One-Stop SMT Line Equipments

Neoden is a manufacturer of compact and cost-effective SMT assembly equipment designed for small to mid-scale electronics production.

Neoden specializes in SMT pick-and-place and reflow systems engineered for rapid prototyping.

Pick and Place

NeoDen PnP machines combine multi-head placement, vision alignment, and flexible feeder compatibility to achieve accurate and dependable SMT assembly across diverse PCB designs.

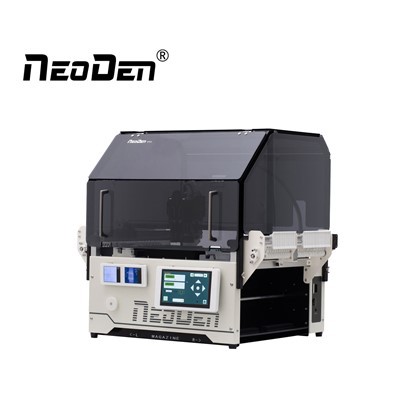

Desktop Machine – YY1 ○ Entry-level prototyping ○ 2 heads + 3 nozzle change capacity ○ Placement rate up to 3,000 CPH ○ Pacement accuracy ± 0.02mm ○ Feeder capacity of 52 (all 8 mm) tape feeders ○ Max. board size: 249 x 350 mm

Desktop Machine – NeoDen 4 ○ Higher-throughput small production ○ 4 heads ○ Placement rate up to 4,000 CPH ○ Pacement accuracy down to 0201 ○ Feeder type: Tape, Vibaration, Tray ○ Max. board size: 310 x 1200 mm

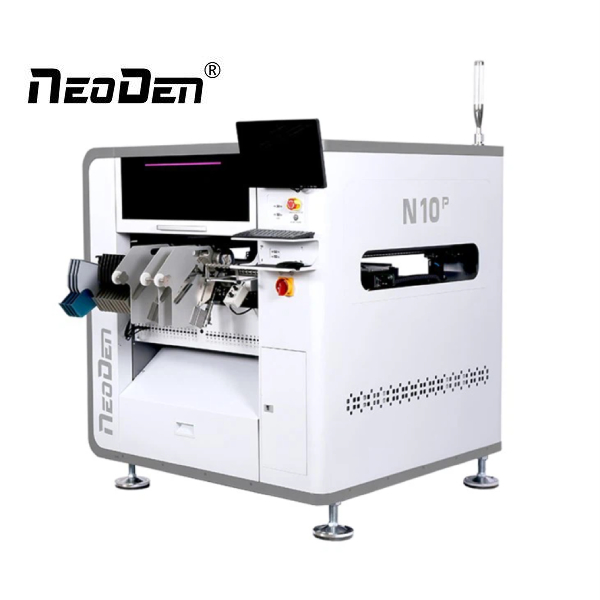

Standalone Machine – N10P ○ Industrial production ○ 8 heads + 39 nozzle change capacity ○ Placement rate up to 20,000 CPH ○ Pacement accuracy ± 0.01mm ○ Feeder capacity of 80 tape&reel positions ○ Max. board size: 450 x 1500 mm

Reflow Oven

NeoDen is one of the leading manufacturers that provide affordable reflow soldering ovens for different uses such as PCB assembly. NeoDen reflow ovens deliver uniform temperature control and stable reflow profiles, enabling professional-grade SMT soldering in a compact and cost-effective footprint. All ovens are equiped with a built-in welding smoke filtering system for harmful gases.

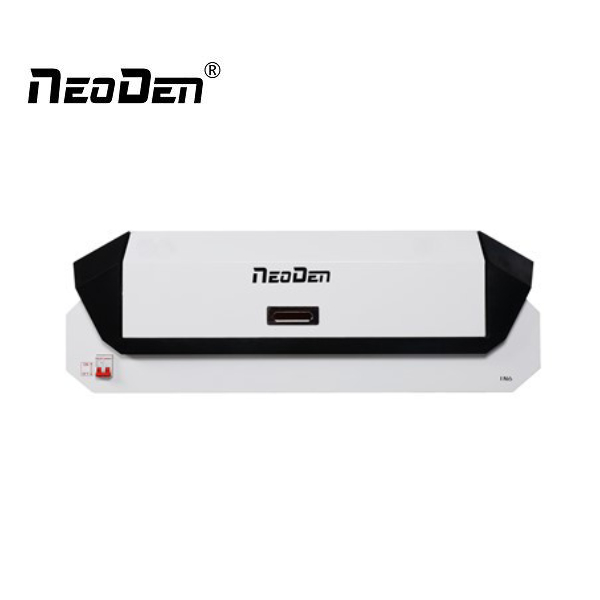

IN6 Desktop Reflow Oven ○ 6 zones design ○ 50-300 mm/min ○ Max. height: 26 mm ○ Max. board width: 260 mm

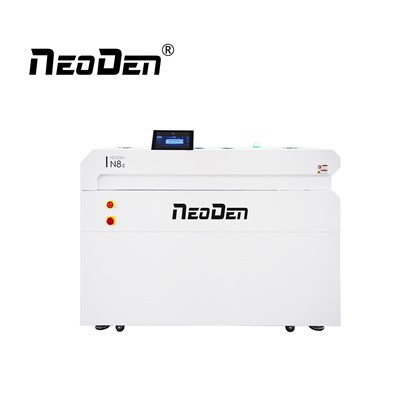

IN8C Reflow Oven ○ 8 zones design ○ 50-600 mm/min ○ Max. height: 30 mm ○ Max. board width: 330 mm

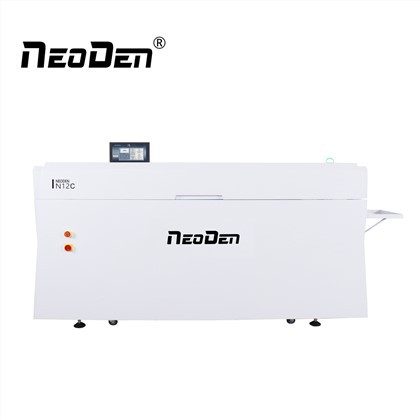

IN12C Reflow Oven ○ 12 zones design ○ 50-600 mm/min ○ Max. height: 35 mm ○ Max. board width: 350 mm

Solder Paste Printer

NeoDen provides different levels of stencil printers, from manual to semi-automatic models, enabling clean and reliable solder paste printing for every production scale.

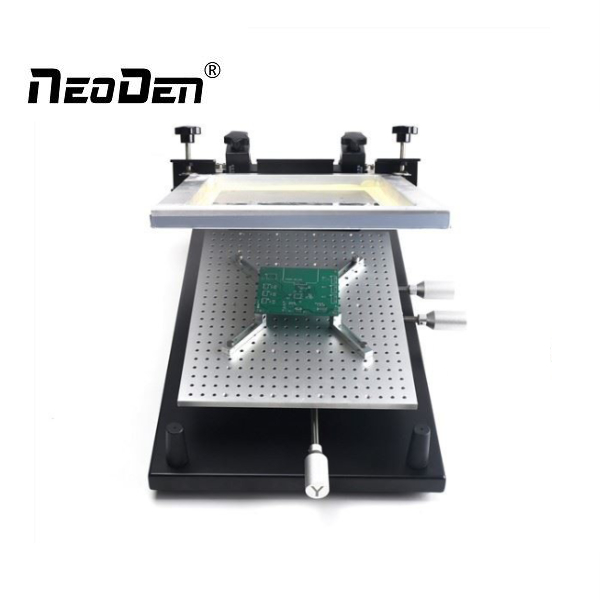

FP2636 Solder Paster Printer ○ Manual Solder Paste Printer ○ Max. board width: 280 x 380 mm ○ Board thickness: 0 ~ 20 mm

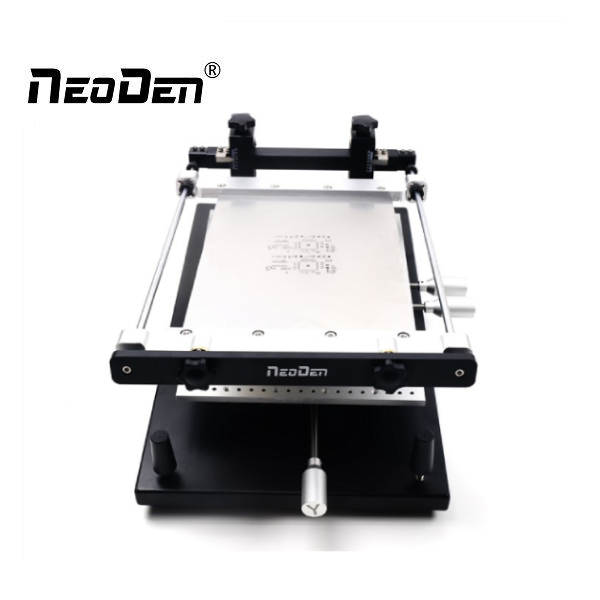

FP2636 Frameless Printer ○ Manual Solder Paste Printer ○ Max. board width: 260 x 360 mm ○ Board thickness: 0.5 ~ 10 mm

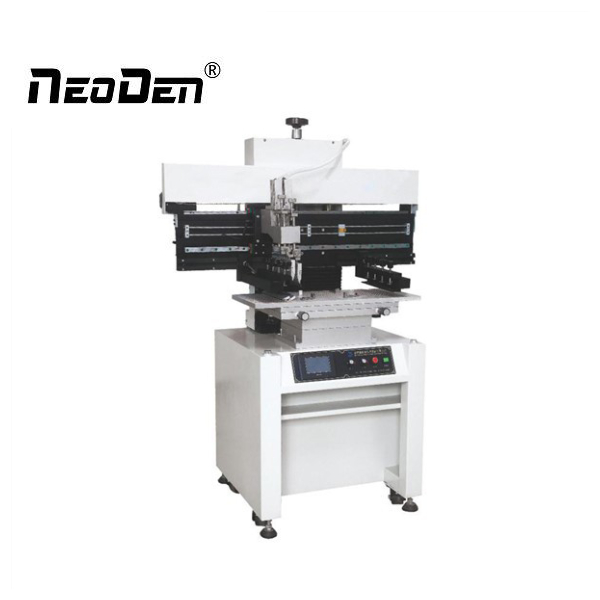

YS600 Semi-Auto Screen Printer ○ Semi-auto Paste Printer ○ Max. board width: 600 x 240 mm ○ Board thickness: 0.2 ~ 20 mm

Inspection Machine

NeoDen offers a comprehensive range of SMT inspection machines, including SPI and AOI systems, to ensure accurate solder paste monitoring and reliable post-placement defect detection.

ND S1 Solder Paste Inspection Machine ○ Detection precision: 1 μm ○ Max. board width: 500 x 460 mm

ND 56X X-Ray Inspection Machine ○ Focus spot size: 15 μm ○ Max. board width: 280 x 320 mm

More Products

NeoDen also offers a wide range of SMT related products, such as reel counter machine, loader/unloader, conveyor, PCB cleaning machine, PCB storage machine, etc. Please contact us for more details.
