Fast Metal 3D Printing Equipment

RAPIDIA is a metal 3D printing company that pioneered a water-based binder-jetting process, enabling safe and clean metal & ceramic part production.

The powder-free metal 3D printing process can scale from lab-based rapid prototyping into an affordable small-scale production solution.

Get a quote

Technology

Metal Paste Deposition

Rapidia’s additive manufacturing platform is powered by Metal Paste Deposition, a powder-free metal 3D printing process that can scale from lab-based rapid prototyping into an affordable small-scale production solution.

Products

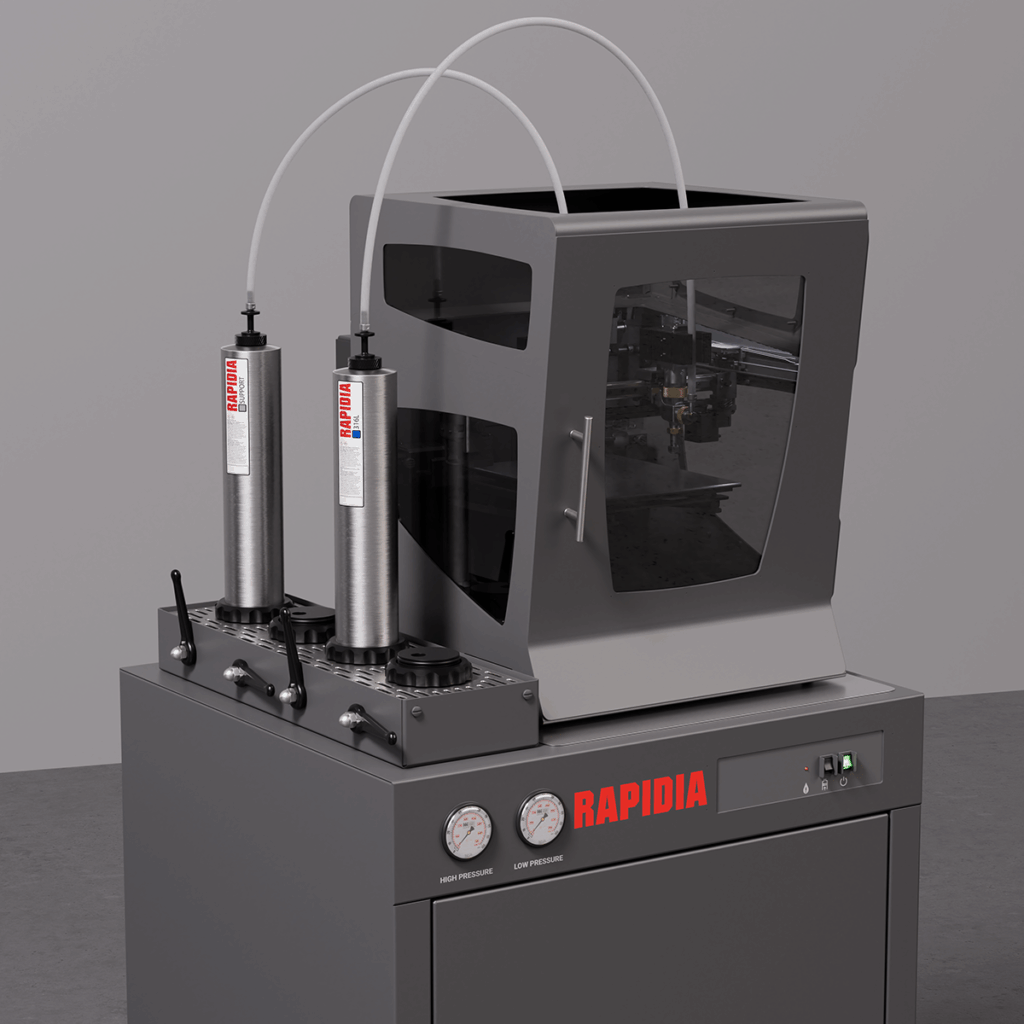

Conflux Metal 3D Printer

Faster – Get functional parts in under 24 hrs
Safer – Water based metal paste, no chemical solvents or loose powder
Affordable – Keep low volume part production lean and agile
Max. Build Size 200 mm x 240 mm x 150 mm

Conflux Furnace

High-efficiency sintering furnace

Partial-pressure vacuum sintering with Argon

Maximum temperature: 1400 °C

Hot zone dimensions: 245 mm (ID) * 305 mm (L)

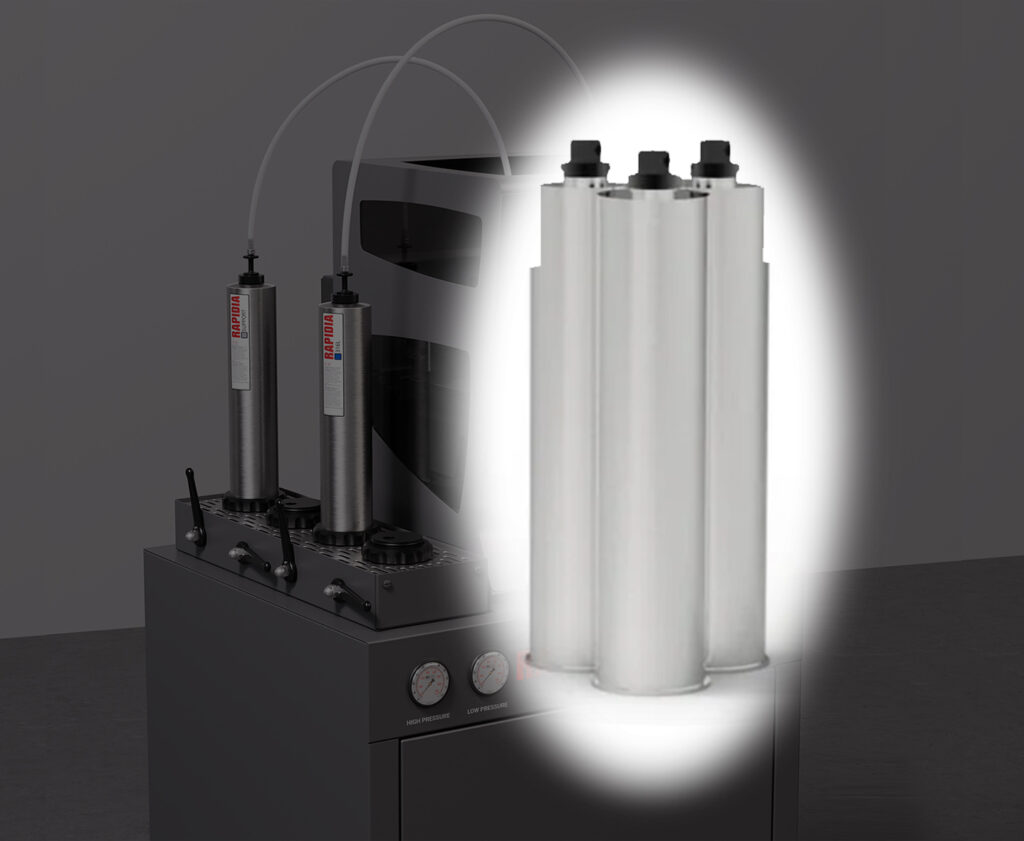

Metal Paste Feedstock

1L/1000cc feedstock catridges

Offers a safer way to 3D print metals

Materials

Advanced materials for your application

The growing materials portfolio includes several metals as well as an evaporative support material to unlock impossible part geometry and eliminate the need for support removal processes.

Qualified Materials
316L Stainless Steel 17-4 PH Stainless Steel Nickel Superalloy 625
In Deveopment
Copper (beta release available) H13 Tool Steel Cemented Tungsten Carbide

Allows printing of any overhang

Function as a release layer between metal surfaces

Support Material

The Conflux printer has dual extruders which allows the printing of evaporative support inside and outside any metal part.

⬅ Evaporative support serves two purposes

Applications

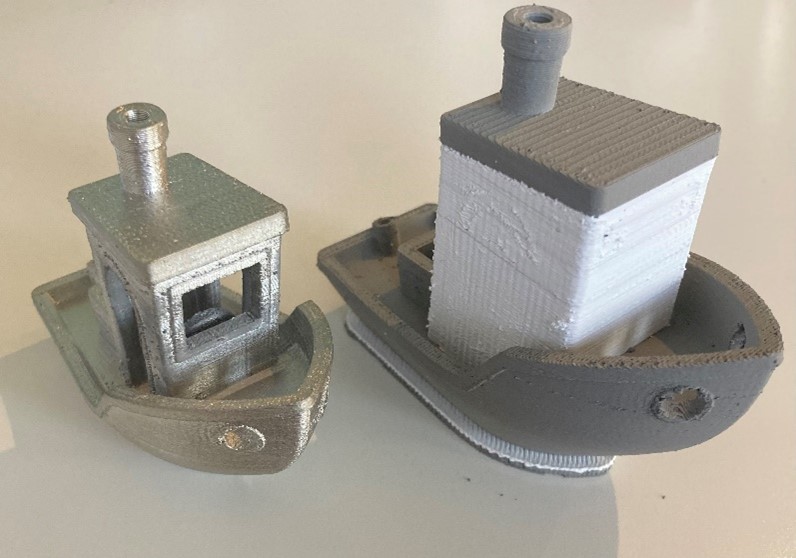

3D Benchy

  • Print Time: 6hr 58min
  • Printed Size: 42.8mm x 83.9mm x 65.6mm
  • Sintered Size: 36.8mm x 72.3mm x 56.5mm
  • Accuracy: X – 0.18%; Y – 0.1%; Z – 0.05%

Impeller

  • Print Time: 8hr
  • Printed Size: 73.9mm x 73.8mm x 31.3mm
  • Sintered Size: 63.6mm x 63.6mm x 27mm
  • Accuracy: X – 0.16%; Y – 0.03%; Z – 0.00%

Small Mount

  • Print Time: 48min
  • Printed Size: 11.5mm x 20.8mm x 22.2mm
  • Sintered Size: 9.9mm x 17.8mm x 19.1mm
  • Accuracy: X – 0.06%; Y – 0.67%; Z – 0.1%

Flow Distributor

  • Print Time: 11hr 45min
  • Printed Size: 86.8mm x 86.8mm x 129mm
  • Sintered Size: 74.8mm x 74.8mm x 112mm
  • Accuracy: X – 0.03%; Y – 0.03%; Z – 0.04%

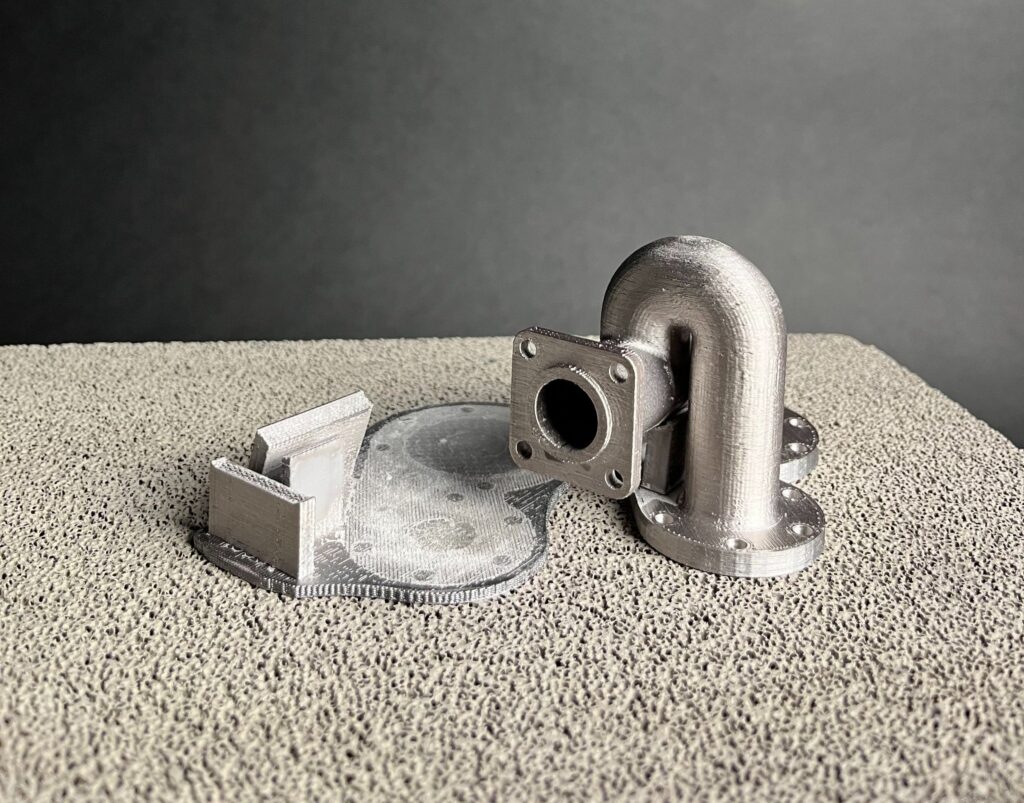

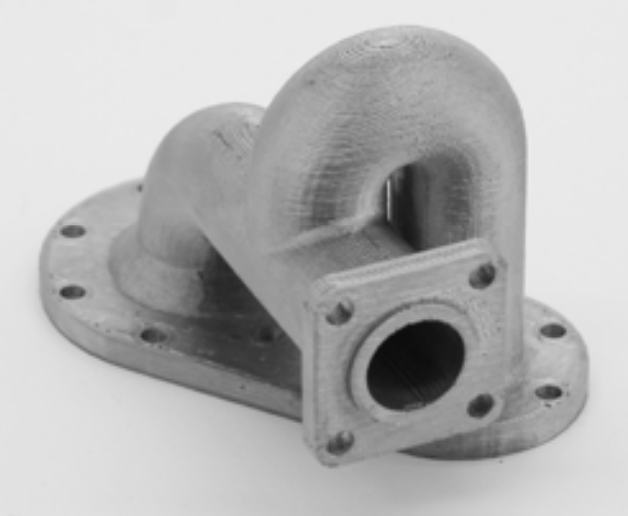

Dual Pipe

  • Print Time: 10hr 10min
  • Printed Size: 80.2mm x 111.4mm x 71.6mm
  • Sintered Size: 69.1mm x 96mm x 61.7mm
  • Accuracy: X – 0.06%; Y – 0.07%; Z – 0.11%

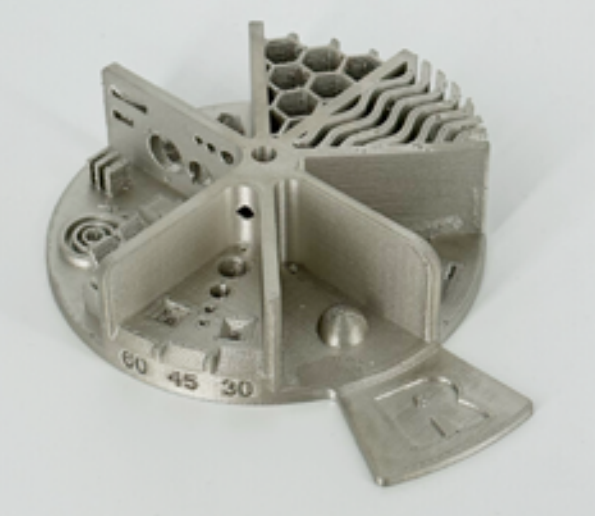

Torture Test

  • Print Time: 12hr 29min
  • Printed Size: 53.3mm x 66.7m x 14.5mm
  • Sintered Size: 45.1mm x 57.5mm x 12.5mm
  • Accuracy: X – 0.06%; Y – 0.06%; Z – 0.02%
